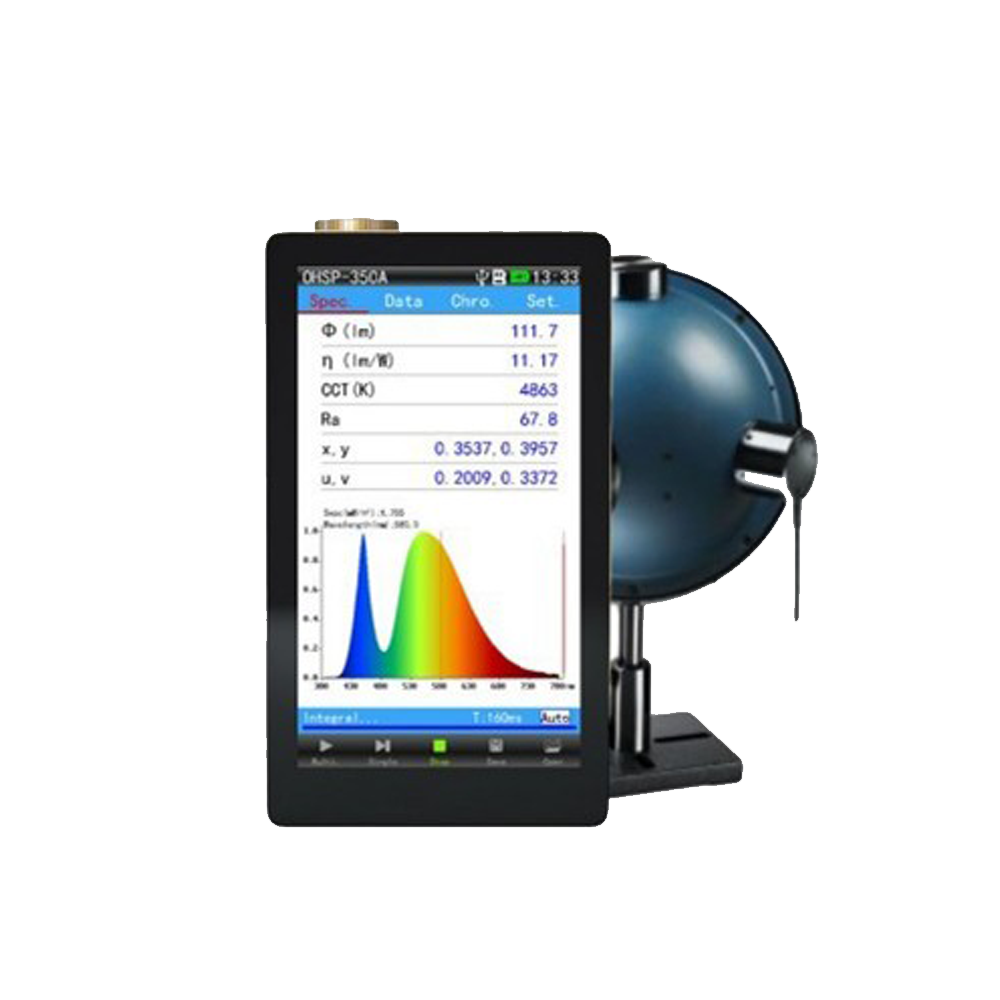

OHSP-350A spectral Luminous flux Colorimeter, it use with integrating sphere for Lumen,CCT CRI analysis.
wavelength range 380nm-780nm.
OHSP350M spectral Luminous flux Colorimeter , it can test Lux and Luminous flux(lm) in one, Suitable for measuring the luminous flux of single light source or whole LED lamp. Also good for field test .
Meas parameters Wave range:350-950nm
|
Luminous flux(lm) |
CRI Ra |
Flicker index |
Flicker freq (Hz) |
|
illuminance E(lx) |
CCT(K) |
Spectral Distribution |
S/P |
|
irradiance Ee(W) |
TM-30-2015 Rf |
modulation depth(%) |
Grow light parameters par ppfd |
|
PPF(umol/s) |
TM-30-2015 Rg |
Flicker percent(%) |
OHSP350 basic paramters |
APPLICATION
| Model | OHSP350 A/OHSP350M Luminous Flux Version |
| Wavelength range |
380nm-780nm / 350nm ~950nm |
| Light Splitting Mode |
long focal cross section |
| Sensor |
High precision CCD |
| Spectral Bandwidth (FWHM) |
2nm |
| Spectral Resolution |
0.2nm X, Y repetitive ±0.0005 |
| Wavelength Accuracy |
+ 0.5nm |
| Illuminantion Accuracy |
(±4% Reading +1 Digital） |
| Lighting Area |
Ф10mm |
| Integrating Time |
50μs～10000ms |
|
Chromaticity Coordinate Accuracy |
±0.0025. |
|
CCT Range |
1,000K~ 100,000K |
|
Stray Light |
≤0.3% |
TEST INTERFACE
