CX-1000 Imaging Luminance Measurement device, used in Led modules, lamps, luminaires, displays, street luminance and other sources in a broad range of applications.
SYSTEM FEATURES

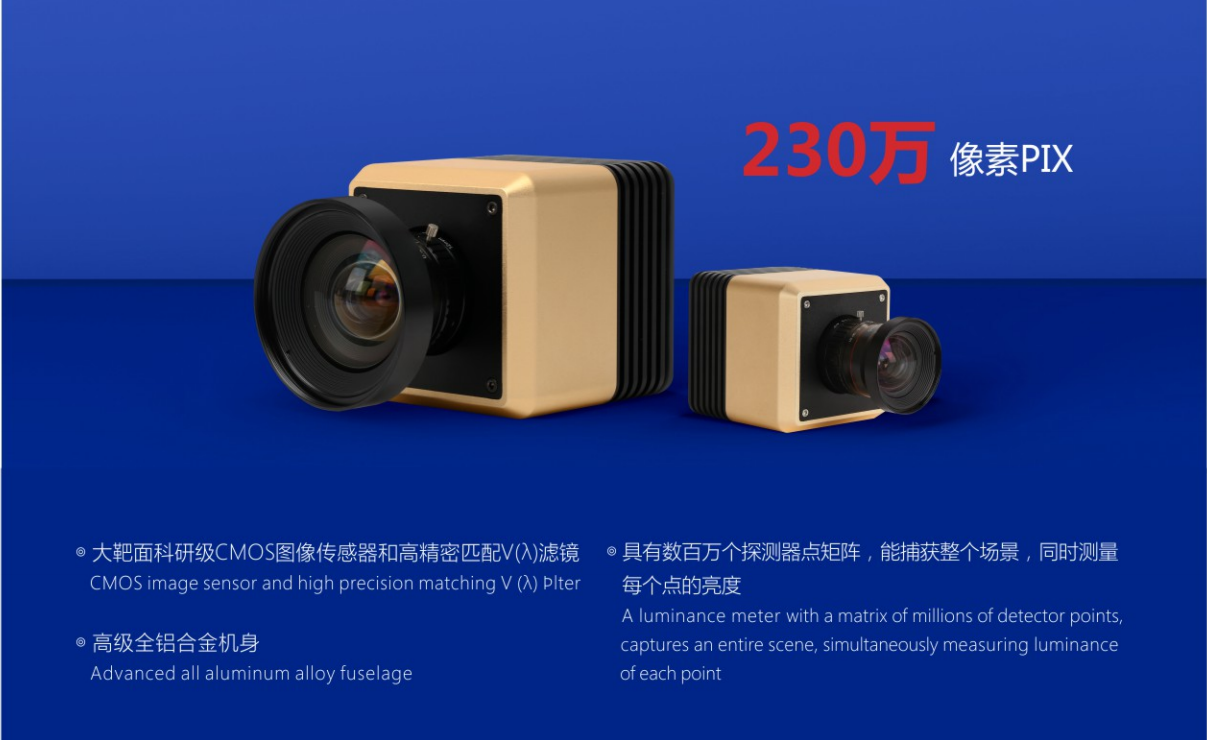

1. Using a CMOS image sensor and High class V-lambda filter

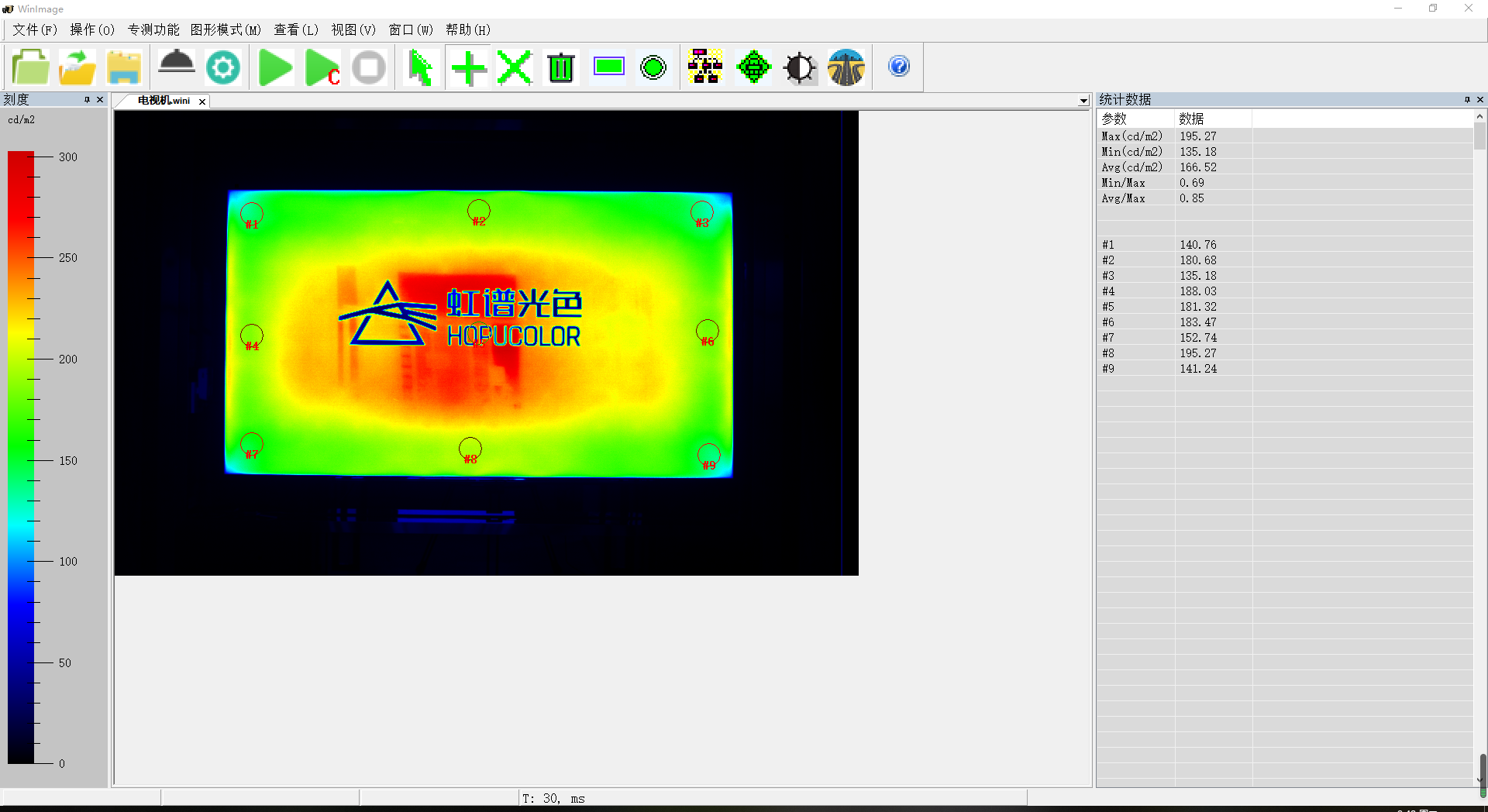

2. A luminance meter with a matrix of millions of detector points, captures an entire scene, simultaneously measuring luminance of each point
3. Rapidly measures many point in a single operation
4. High resolution and high sensitivity
Meas parameters
●Imaging resolution : 1920x1200 （ FUHD.23MPix ）
●A/D conversion : 12位
●Range : 0.01cd/m2-10000cd/m2
●Resolution : 0.01cd/m2
●Dynamic range : 1:1000000
●Lens focal length : 50mm （Available on request）
●Minimum working area :86mmx55mm （距离440mm ）
● Spectral corresponding uncertainty : A级（F1） < 3%
●Integration time : 50ps~30s
●Type of sensor:corrected CMOS
●Focus distance : 440mm〜8
●Size : 86mm x90mmx 156mm
●Weight : 1200g
●connection : USB 3.0
●Power : USB
