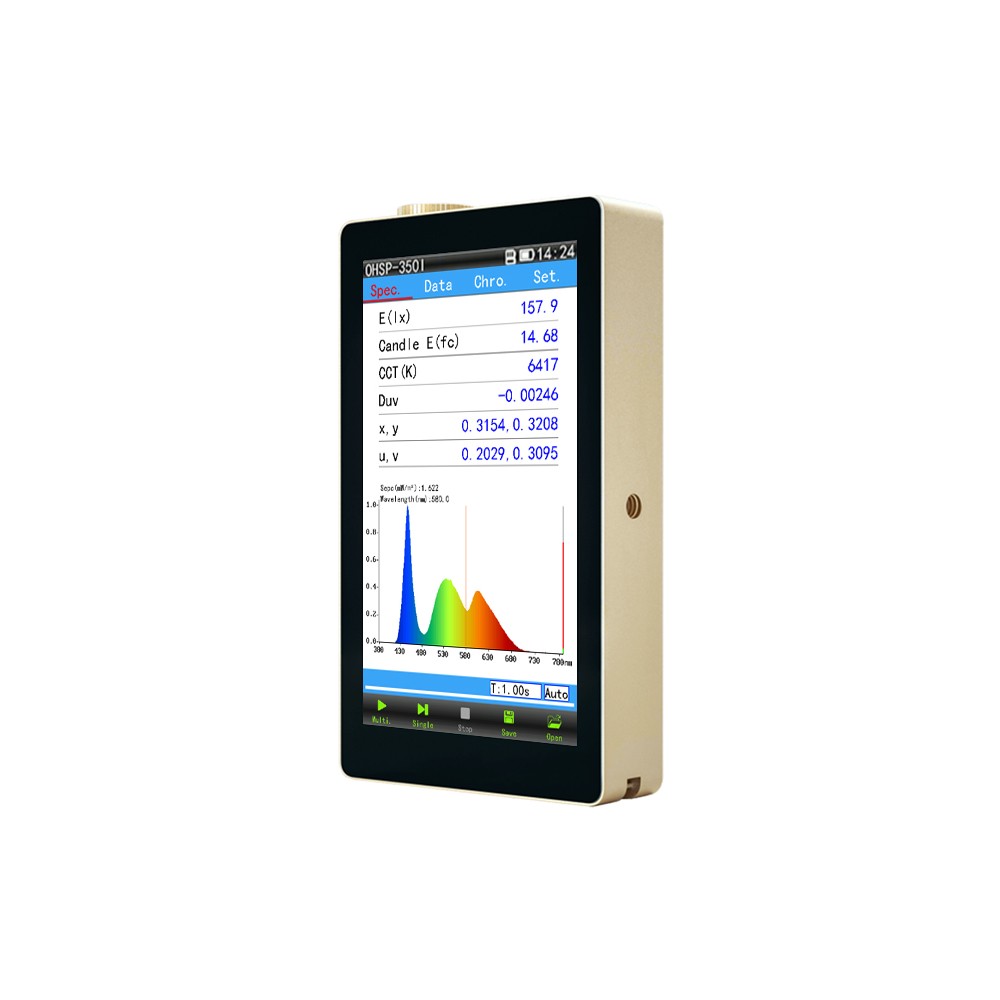

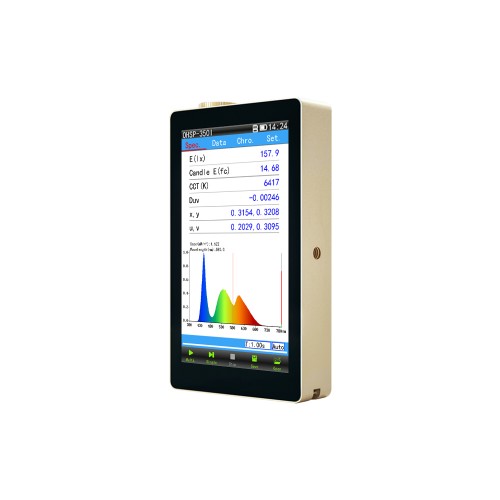

OHSP350I Spectral Irradiance Colorimeter, used for on-line test of industrial .It is equipped with RS485 communication interface, supports ModBus protocol, and can communicate with PLC；Open USB communication protocol, support self-programming; The upper and lower limit alarm can be set to output OK and NG signals.
Meas parameters Wave range:380-780nm
|
CCT (K) |
illuminance(lx) |
S/P |
Dominant(nm） |
|
Coordinate x,y |
Candle light(fc) |
Spectral Distribution |
Purity%） |
|
Coordinate u,v |
CRI(Ra) |
IrradianceEe(W/m2) |
OHSP350 basic parameters |
Application
| Model | OHSP350 I Industry Version |
| Wavelength range | 380nm ~780nm |
| Light Splitting Mode | long focal cross section |
| Sensor | High precision CCD |
| Spectral Bandwidth (FWHM) | 2nm |
| Spectral Resolution | 0.2nm X, Y repetitive ±0.0005 |
| Wavelength Accuracy | ± 0.5nm |
| Illuminantion Accuracy | (±4% Reading +1 Digital） |
| Lighting Area | Ф10mm |
| Integrating Time | 50μs～10000ms |
| Chromaticity Coordinate Accuracy | ±0.0025. |
| CCT Range | 1,000K~ 100,000K |
| Stray Light | ≤0.3% |
