一、Test parameters
| PPFD(umol/m2/s) |
PAR（mW/cm2） |
Kppfv(umol/s/klm) |
YPFD(umol/m2/s) |
| Ech-A (mW/cm2) |
Ech-B (mW/cm2) |
S/P |
Dominant wave(nm） |
| Illuminance E(lx) |
Candle Light E (fc) |
Spectral distribution |
Purity（%） |
| Coordinate |
CRI Ra |
Irradiance Ee(W/m2) |
OHSP350 Other parameters |

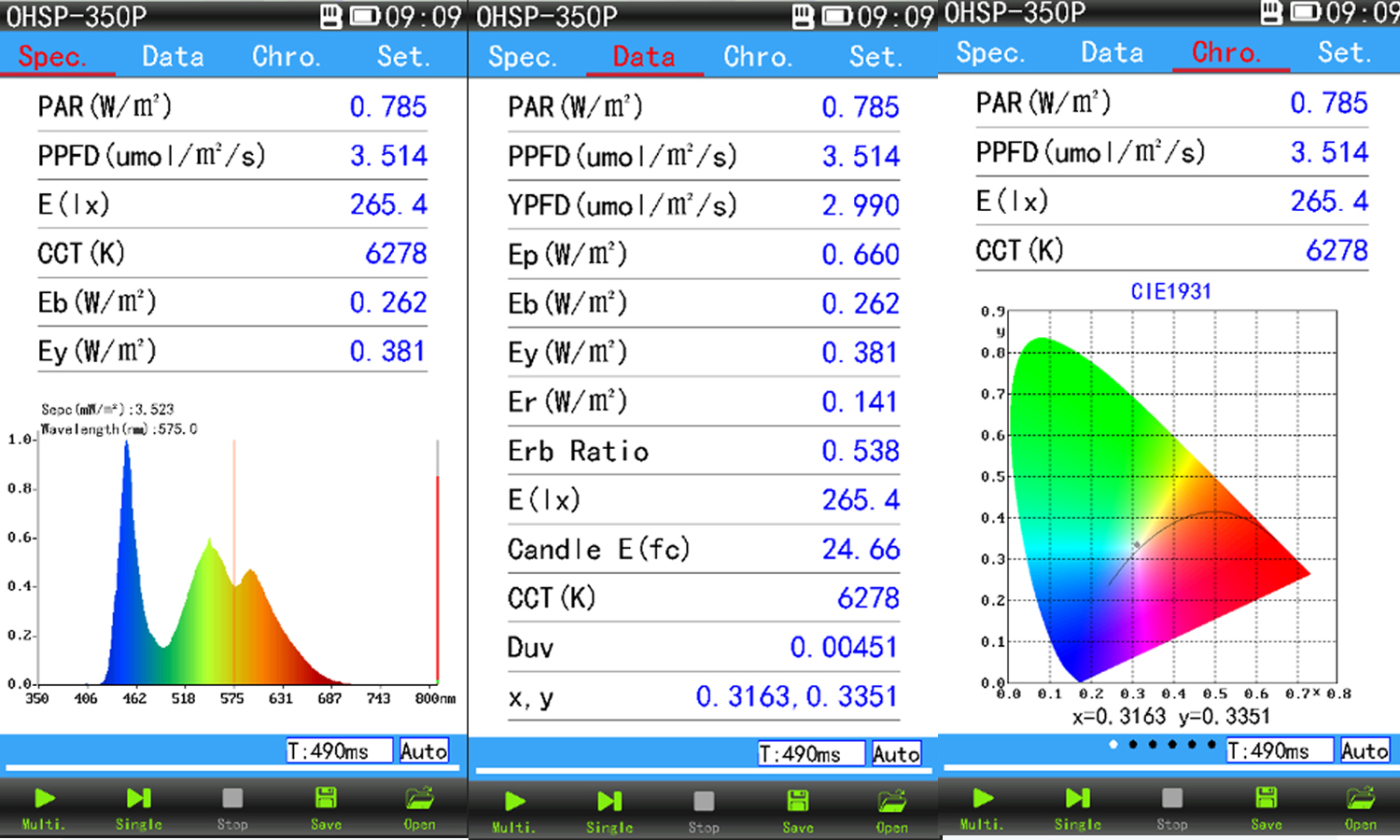

二、Test Interface
|
General
|
|
|
Short description
|
Spectroradiometer for measurement of the illuminance, spectrum, light color, and color rendering
|
|
Main features
|
Mobile meter, spectroradiometer with a 2 nm optical bandwidth , precise cosine field of view function, Lithium ion battery with
over 10 operation hours |
|
Measurement range
|
5 lx to 200,000 lx, 350 nm to 800 nm
|
|
typical applications
|
Precise spectral light meter for the lighting industry
|
|
Calibration
|
Factory calibration. Traceable to international calibration standards
|
|
Product
|
|
|
OHSP350P
|
Handheld meter for illuminance and light color. Color-Touchscreen, simple intuitive Operation with clearly arranged display views.
Storage of 10 measuring points and selection of different display views is possible. |
|
Input optics
|
Diffuser window with 10mm diameter, cosine corrected field of view, f1 ≤ 6 %
|
|
Spectral Detector
|
|
|
spectral range
|
(350 - 800) nm
|
|
Optical Bandwidth
|
2 nm
|
|
|
optical bandwidth correction applied according to CIE 214
|
|
Measurement range typ. white LED
|
(5 - 200000) lx
|
|
CCT Measurement range
|
(1000 - 100000) K
|
|
Calibration
|
|
|
Calibration uncertainty
|
|
|
|
Illuminance (typ. LED) +/- 4%
|
|
Miscellaneous
|
|
|
Interface
|
USB 2.0
|
|
temperature range
|
Operation: -10°C to +40°C
|
|
|
Storage: -25°C to +45°C
|
|
Power Supply
|
5VDC by USB
|
|
Power Supply
|
rechargeable battery
|
|
Display
|
Color Touchscreen
|
|
Weight
|
430 g
|
|
Dimensions
|
138.5 mm x 81 mm x 23 mm
|
三、Application
