Product Description and Application Scenarios:

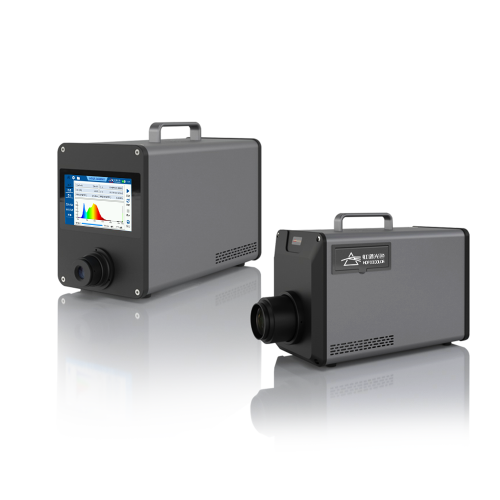

The HPSR-3000NV can measure luminance, radiance in the visible and infrared bands, night vision weighted radiance (NVIS value), relative spectral power distribution P(λ); chromaticity coordinates (x, y), (u', v'); correlated color temperature: Tc; color rendering index: Ra; Ri (i=1~14) (R15 can be calculated upon request); color tolerance; peak wavelength, half-width, color purity, dominant wavelength; red ratio, and other parameters, with a wavelength range of 380-950nm. The device calculates the night vision radiance value according to the weighted calculation requirements of the GJB1394-92 standard for aircraft internal lighting compatible with night vision imaging systems, ensuring the accuracy of internal lighting and display testing for military aircraft.
Equipment Features:
1. Absolute accuracy using a spectroradiometric color measurement method.
2. Utilizes a constant-temperature cooled array detector, enabling ultra-low brightness measurement capabilities down to 0.0005 cd/m², and an ultra-wide brightness measurement range.
3. Significantly reduced measurement time and faster measurement speed.
4. No V(λ) mismatch error, resulting in high measurement accuracy.
5. Features a rear interface design and other features to enhance integration with system equipment.
、
Main Applications:
1. Widely used in military, security, aerospace, and other fields to ensure optimal equipment performance in complex spectral environments.
2. By measuring the spectral radiance of night vision devices, manufacturers and users can understand the actual performance of the equipment, guiding product design and improvement.
