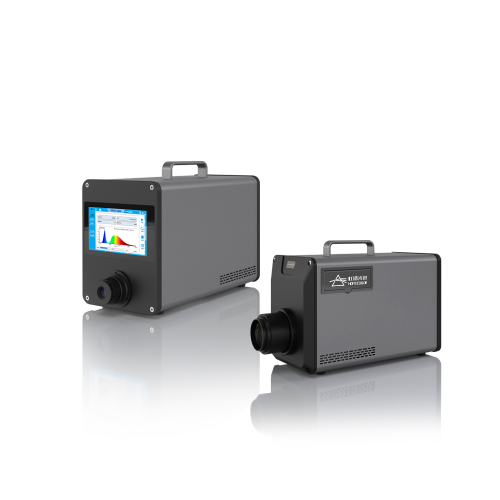

The HPSR-3000 Spectroradiometer (Point-of-View)is a high-sensitivity, high-speed, next-generationspectroradiometer designed for measuring ultra-low to ultra-high luminance. its 1° measurement range expandsto cover ultra-low luminance levels of 0.0005 cd/m2 and ultra-high luminance levels of up to 500,000,000 cd/m2, This allows for measurement of ultra-high luminance products such as LEDs without the need for an external ND. Its updated optical structure, enhanced sensitivity, and improved internal systems significantly shortenmeasurement time, Furthermore, its large, color touchscreen display offers intuitive operation and enhancedusability.
Device Features
High absolute value accuracy of SpectroradiometerWide dynamic range (0.0005~500,000,000 cd/m2).
Significantly shortened measurement time, enabling faster measurement speeds.
Large color touchscreen for enhanced operability.
Rear-mounted interface design enhances the functionality of the system.
ClE170-2:2015 was published by the ClE (international Commission on llumination) in 2015 as a colormatching function that better matches the visual characteristics of the human eye.
By using theClE170-2:2015 color matching function, it is expected that measurement results closer to the humaneye will be achieved when measuring wide color gamut displays.
