CHRACTERISTICS AND SPECIFICATIONS

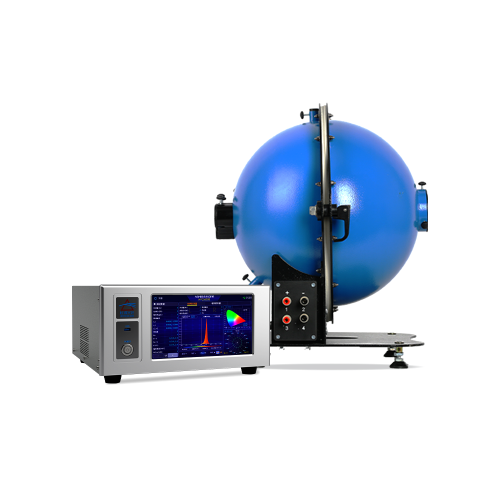

The HPCS6300IR infrared spectrometer is a multifunctional comprehensive testing system that integrates photometric parameters, chromatic parameters, infrared radiation power, infrared irradiance parameters (optional), electrical parameters, and other parameters. The product adopts modular and integrated design, making the structure compact and just right. Paired with a 10.1-inch industrial grade full-color LCD screen and high-sensitivity full screen capacitive touch, the self-developed human-machine interaction system running on the built-in high-speed processor is more convenient for users to operate and use. The built-in high-precision spectral analyzer and precise DC stabilized power supply meet the needs of users for different functions. The small size provides higher performance test results than traditional large cabinet testing systems, with precise results, diverse functions, and highly integrated systems and structures. It not only meets the needs of different customers and industries, but also helps customers save space and compress costs significantly. Widely used in scientific research experiments and analysis, product testing and identification, laser power spectrum measurement, uniform light sources for various types of light sources, reflectance spectrum measurement, iodine tungsten lamp tubes and other scenarios
Technical:
1. Test speed:5ms-2s;
2. Range of wavelength: 200~2500nm;
3. Accuracy of wavelength: ±0.5nm;
4. Accuracy of chromaticity coordinates: ±0.0015(x, y);
5. Correlative color temperature: 1000K—100000K
6. Range of luminous intensity: 0.1mlm~200000lm(depending on the size of sphere);
7. Accuracy of photometry: class1.
