UVB is known as the middle wave erythema effect ultraviolet ray, it can promote the mineral metabolism and vitamin D formation in the body. Long term exposure will make the skin tan and molt, and be used for UV health lights, medical physiotherapy lamps, plant growth lamps, fluorescent lamps, aging experiments, etc.
The spectral response range is 280nm-315nm, which is suitable for 297nm, 311 wavelength UVB light source measurement.
一 UVB Parameters of UV radiometer
|
Model |
UVB |
|
Measurement accuracy |
±8% |
|
Sampling rate |
5 times / second |
|
Test light hole diameter |
￠6mm |
|
Probe size diameter |
￠30 mm |
|
Size |
38*38*22mm |
|
Weight |
50g |
Model list
|
|
Model |
Application |
Unit |
Measurement range |
Wavelength range |
|
|
UVC |
HPL200UVC |
UV Germicidal lamp Intensity and energy test λp =254nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.1-200,000 uW/cm2 |
245-280nm |
|
HPL210UVC |
||||||
|
HPL220UVC |
||||||
|
HPL200UV0 |
UVCLED Germicidal lamp Intensity and energy test λp =275nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.1-200,000 uW/cm2 |
200-400nm |
|
|
HPL210UV0 |
||||||
|
HPL220UV0 |
||||||
|
HPL200UV1 |
UVCLED Germicidal lamp Intensity and energy test，λp =275nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.01-20000 mW/cm2 |
200-400nm |
|
|
HPL210UV1 |
||||||
|
HPL220UV1 |
||||||
|
UVB |
HPL200UVB |
Medical skin treatment lamp UV Intensity test，λp =311nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.1-200,000 uW/cm2 |
280-315nm |
|
HPL210UVB |
||||||
|
HPL220UVB |
||||||
|
UVA |
HPL200UVA |
UV curing, High pressure mercury lamp Intensity and energy test，λp =365nm< |
uW/cm2、W/m2 |
mJ/cm2 |
0.1-200,000 uW/cm2 |
350-380nm |
|
HPL210UVA |
||||||
|
HPL220UVA |
||||||
|
HPL200UV2 |
UV curing, UVALED Intensity and energy test of surface light source，λp=395nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.01-20000 mW/cm2 |
340-420nm |
|
|
HPL210UV2 |
||||||
|
HPL210UV2 |
||||||
|
HPL200UV3 |
UV curing, UVLED Intensity and energy test of point light source，λp=395nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.01-20000 mW/cm2 |
340-420nm |
|
|
HPL210UV3 |
||||||
|
HPL220UV3 |
||||||
|

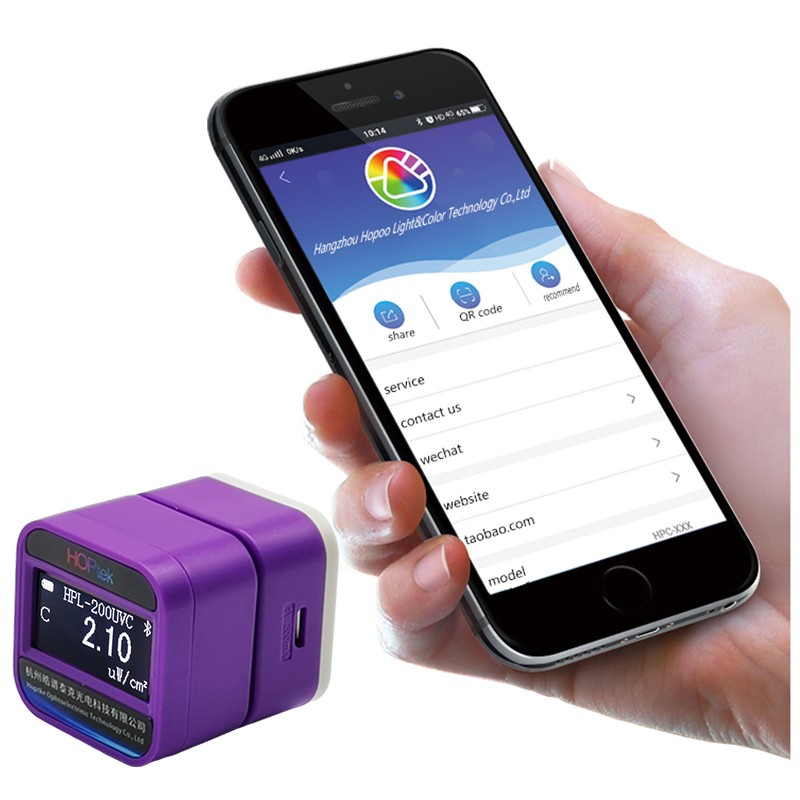

HPL-200 series includes Android mobile app Bluetooth connection； |
||||||
