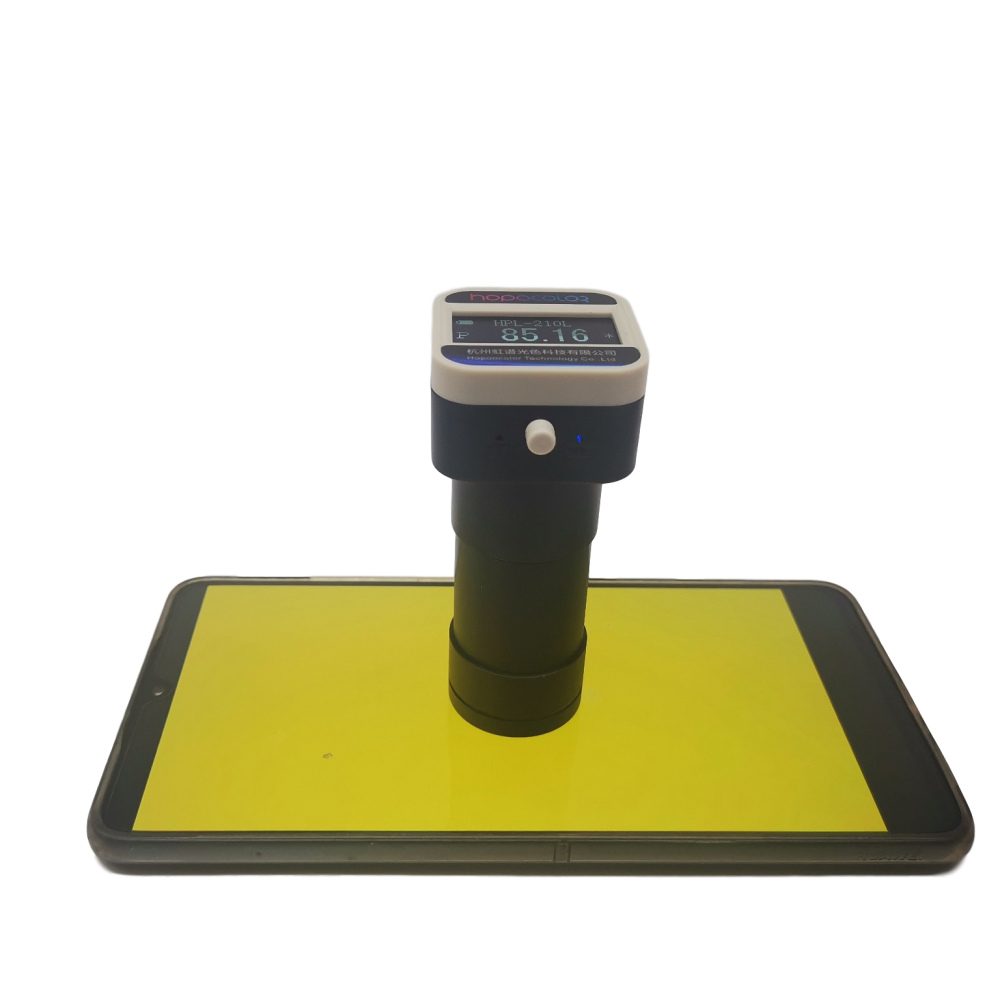

HPL200L luminance meter is specially designed for measuring the brightness of various fluorescent screens and monochromatic transmission screens. It has a wide range of applications in the measurement of medical X-ray, CRT and field luminescence, fluorescent substances, monochromatic backlight LCD screen, LCD backlight, etc.
一、HPL200L Parameters of luminance meter
|
Name |
Specifications |
Name |
Specifications |
|
Measurement range |
0.1-10000cd/m2 |
Cosine correction accuracy |
<4%(Class 1) |
|
Operate Temp |
0~35℃ |
V(λ) Error |
<6%(Class 1) |
|
Storage Temp |
-10~40℃ |
Size |
38*38*22mm |
|
Power Supply |
Lithium battery |
Weight |
50g |
|
Material |
ABS Plastic |
Test unit |
μW/cm2 |
二、Model List
|
Name |
Model |
Function Description |
Unit |
Range |
Wave Range |
|
|
Wireless Luminance Meter |
HPL200LX |
High precision V (λ) cosine correction, reaching the national level photometer |
lx、FC |
lx.s |
0.1-200,000 lx |
380-780nm |
|
HPL210LX |
||||||
|
HPL220LX |
||||||
|
Luminance Meter |
HPL200L |
Brightness imaging lens, measurement of luminance of liquid crystal screen |
cd/m2、FL |
0.1-200,000cd/m2 |
380-780nm |
|
|
HPL210L |
||||||
|
HPL220L |
||||||
|
Luminance Meter |
HPL200L1 |
Brightness imaging lens,measurement of luminance of liquid crystal screen |
cd/m2、FL |
0.01-20,000cd/m2 |
380-780nm |
|
|
HPL210L1 |
||||||
|
HPL220L1 |
||||||
|
Shading Cylinder Luminance Meter |
HPL200L2 |
Shading Cylinder, measurement of luminance of liquid crystal screen |
cd/m2、FL |
10-20000kcd/m2 |
380-780nm |
|
|
HPL210L2 |
||||||
|
HPL220L2 |
||||||
|
Wireless Luminous Flux Tester |
HPL200LM |
Measurement of luminous flux of various light sources |
lm |
lm.s |
0.1-200,000 lm |
380-780nm |
|
HPL210LM |
||||||
|
HPL220LM |
||||||
|
HPL-200 series includes Android mobile app Bluetooth connection; |
||||||
