UVA waveband is a part of UV wavelength division, known as long wave black spot effect UV, which has strong penetration, can penetrate the skin surface, Tan the skin and produce wrinkles. This band is often used in aging experiments to simulate the sunlight conditions in natural climate. It is suitable for aging test or intensity and energy detection in sunlight.
一 UVA Parameters of UV radiometer
|
Model |
UVA |
|
Measurement accuracy |
±8% |
|
Sampling rate |
5 times / second |
|
Test light hole diameter |
￠6mm |
|
Probe size diameter |
￠30 mm |
|
Size |
38*38*22mm |
|
Weight |
50g |
Model list
|
|
Model |
Application |
Unit |
Measurement range |
Wavelength range |
|
|
UVC |
HPL200UVC |
UV Germicidal lamp Intensity and energy test λp =254nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.1-200,000 uW/cm2 |
245-280nm |
|
HPL210UVC |
||||||
|
HPL220UVC |
||||||
|
HPL200UV0 |
UVCLED Germicidal lamp Intensity and energy test λp =275nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.1-200,000 uW/cm2 |
200-400nm |
|
|
HPL210UV0 |
||||||
|
HPL220UV0 |
||||||
|
HPL200UV1 |
UVCLED Germicidal lamp Intensity and energy test，λp =275nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.01-20000 mW/cm2 |
200-400nm |
|
|
HPL210UV1 |
||||||
|
HPL220UV1 |
||||||
|
UVB |
HPL200UVB |
Medical skin treatment lamp UV Intensity test，λp =311nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.1-200,000 uW/cm2 |
280-315nm |
|
HPL210UVB |
||||||
|
HPL220UVB |
||||||
|
UVA |
HPL200UVA |
UV curing, High pressure mercury lamp Intensity and energy test，λp =365nm< |
uW/cm2、W/m2 |
mJ/cm2 |
0.1-200,000 uW/cm2 |
350-380nm |
|
HPL210UVA |
||||||
|
HPL220UVA |
||||||
|
HPL200UV2 |
UV curing, UVALED Intensity and energy test of surface light source，λp=395nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.01-20000 mW/cm2 |
340-420nm |
|
|
HPL210UV2 |
||||||
|
HPL210UV2 |
||||||
|
HPL200UV3 |
UV curing, UVLED Intensity and energy test of point light source，λp=395nm |
uW/cm2、W/m2 |
mJ/cm2 |
0.01-20000 mW/cm2 |
340-420nm |
|
|
HPL210UV3 |
||||||
|
HPL220UV3 |
||||||
|

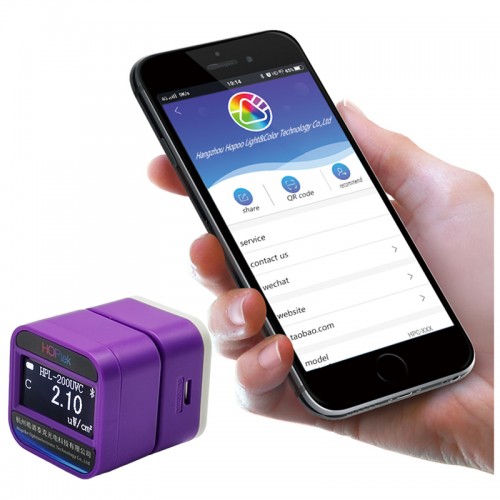

HPL-200 series includes Android mobile app Bluetooth connection； |
||||||
