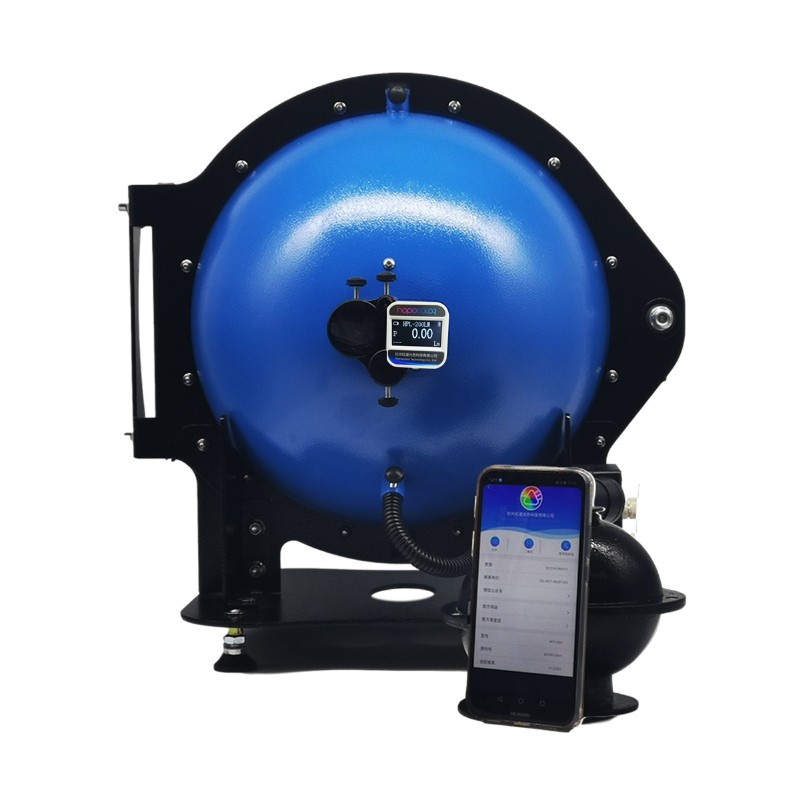

HPL200LM Lumen Meter

HPL-200LM

PRODUKTE

HPL-200LM intelligent lumen meter adopts the innovative compact design, integrates the I/V current and voltage conversion, signal processing, data acquisition, storage and transmission in the traditional illuminance meter probe, and integrates the functions that need to be completed by one instrument into one probe to meet the requirements of miniaturization and intelligence.

一 Parameters of HPL200 / 210 / 220 series luxmeter

Name	Specification	Name	Specification
Measurement Range	0.1-200K lm	Cosine Correction Accuracy	<4%(Class 1)
Operate Temp	0~35℃	V(λ) Error	<6%(Class 1)
Storage Temp	-10~40℃	Dimension	383844mm
Power Supply	Lithium Battery	Weight	50g
Material	ABS Plastic	Unit	lm

二 Model list

	Model	Application	Unit		Measurement range	Wavelength range
UVC	HPL200UVC	UV Germicidal lamp Intensity and energy test λp =254nm	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	245-280nm
	HPL210UVC
	HPL220UVC
	HPL200UV0	UVCLED Germicidal lamp Intensity and energy test λp =275nm	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	200-400nm
	HPL210UV0
	HPL220UV0
	HPL200UV1	UVCLED Germicidal lamp Intensity and energy test，λp =275nm	uW/cm2、W/m2	mJ/cm2	0.01-20000 mW/cm2	200-400nm
	HPL210UV1
	HPL220UV1
UVB	HPL200UVB	Medical skin treatment lamp UV Intensity test，λp =311nm	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	280-315nm
	HPL210UVB
	HPL220UVB
UVA	HPL200UVA	UV curing, High pressure mercury lamp Intensity and energy test，λp =365nm<	uW/cm2、W/m2	mJ/cm2	0.1-200,000 uW/cm2	350-380nm
	HPL210UVA
	HPL220UVA
	HPL200UV2	UV curing, UVALED Intensity and energy test of surface light source，λp=395nm	uW/cm2、W/m2	mJ/cm2	0.01-20000 mW/cm2	340-420nm
	HPL210UV2
	HPL210UV2
	HPL200UV3	UV curing, UVLED Intensity and energy test of point light source，λp=395nm	uW/cm2、W/m2	mJ/cm2	0.01-20000 mW/cm2	340-420nm
	HPL210UV3
	HPL220UV3
HPL-200 series includes Android mobile app Bluetooth connection； HPL-210 series includes 1.3-inch OLED display, Android mobile app Bluetooth connection; HPL-220series includes separable style main machine，1.3-inch OLED display，Android mobile app Bluetooth connection ;
