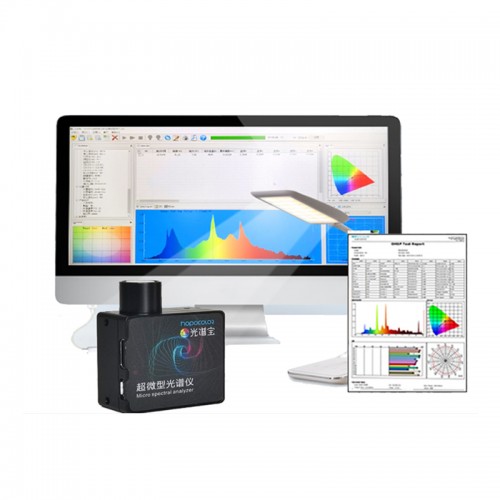

HPCS300 Mini Spectrometer

HPCS300 Mini Spectrometer(pc software)
Whatsapp skype QQ
  • Product Details

HPCS300 Spectral Illuminance Sensing Module ,adopt advanced technology, used in production line ,achievement On-line analysis of light and color parameters,  USB interface to output test result, open USB communication, it can use by self-programme ,read spectrum data、CCT、Lux etc

Models

Model

Wave Range

communication interface

Parameters

HPCS300

380-780nm

USB

Base +USB interface

HPCS300P

350-800nm

USB

Base+plant light parameters

HPCS300I

380-780nm

USB/RS45

IO Control, Rs485


Technical Indicator

Name

Specifications

Name

Specifications

Spectral platform

Long focus CT system

illuminance range

5-200000lx

(FWHM)

4nm

CCT range

1000-100000K

Spectral Resolution

0.5nm

x,yAccuracy

±0.0025


±0.0025


±4%


Sensor

CCD

x,yRepeatability

Sensor array points

1500

Illuminance accuracy

Zeroing mode

Auto zeroing

Wave Accuracy

±1nm

Integration time

50us-20000ms

resolution

16bits,250kSPS

Window size

⌀10mm

size

50*41*22mm
